Revolt Advanced 0
Revolt Advanced 0
Regular price
$2,844.00
Regular price
Sale price
$2,844.00
SKU:1080030106
Quantity
Couldn't load pickup availability

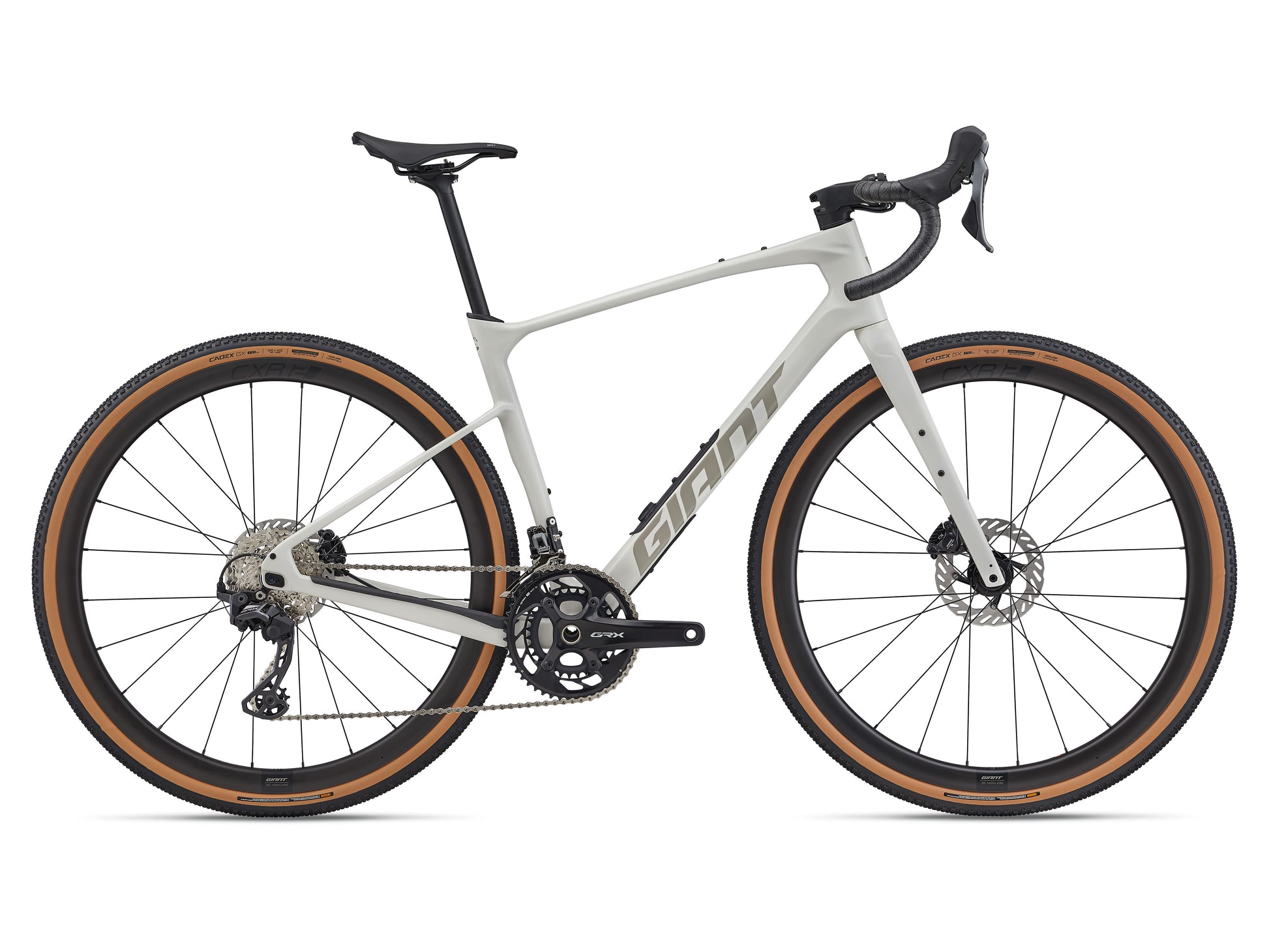

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Product Specifications
Product Specifications
Sizes:
XS, S, M, M/L, L, XL
Colors:
Snow Drift
Frame:
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork:
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar:
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips:
Stratus Lite 3.0
Stem:
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost:
Giant D-Fuse SL, composite, -5/+15mm offset
Saddle:
Giant Grit
Pedals:
no pedal [GA, Pan-Eu], platform pedal [GU, GV, GJ]
Shifters:
Shimano GRX RX-820, 2x12
Front Derailleur:
Shimano GRX RX-820
Rear Derailleur:
Shimano GRX RX-820
Brakes:
Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
Brake Levers:
Shimano GRX RX-820 hydraulic
Cassette:
Shimano CS-HG710, 12-speed, 11x36
Chain:
KMC X12L-1
Crankset:
Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket:
Shimano, press fit
Rims:
Giant CXR 2 WheelSystem, [F] 35mm, [R] 35mm
Hubs:
[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
Spokes:
Sapim Sprint
Tires:
Crosscut Grip 45c
Extras:
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
Max Tire Clearance:
53mm
Techs & Features
Techs & Features
Advanced Composite Technology
D-Fuse Technology
OverDrive
Tubeless System
